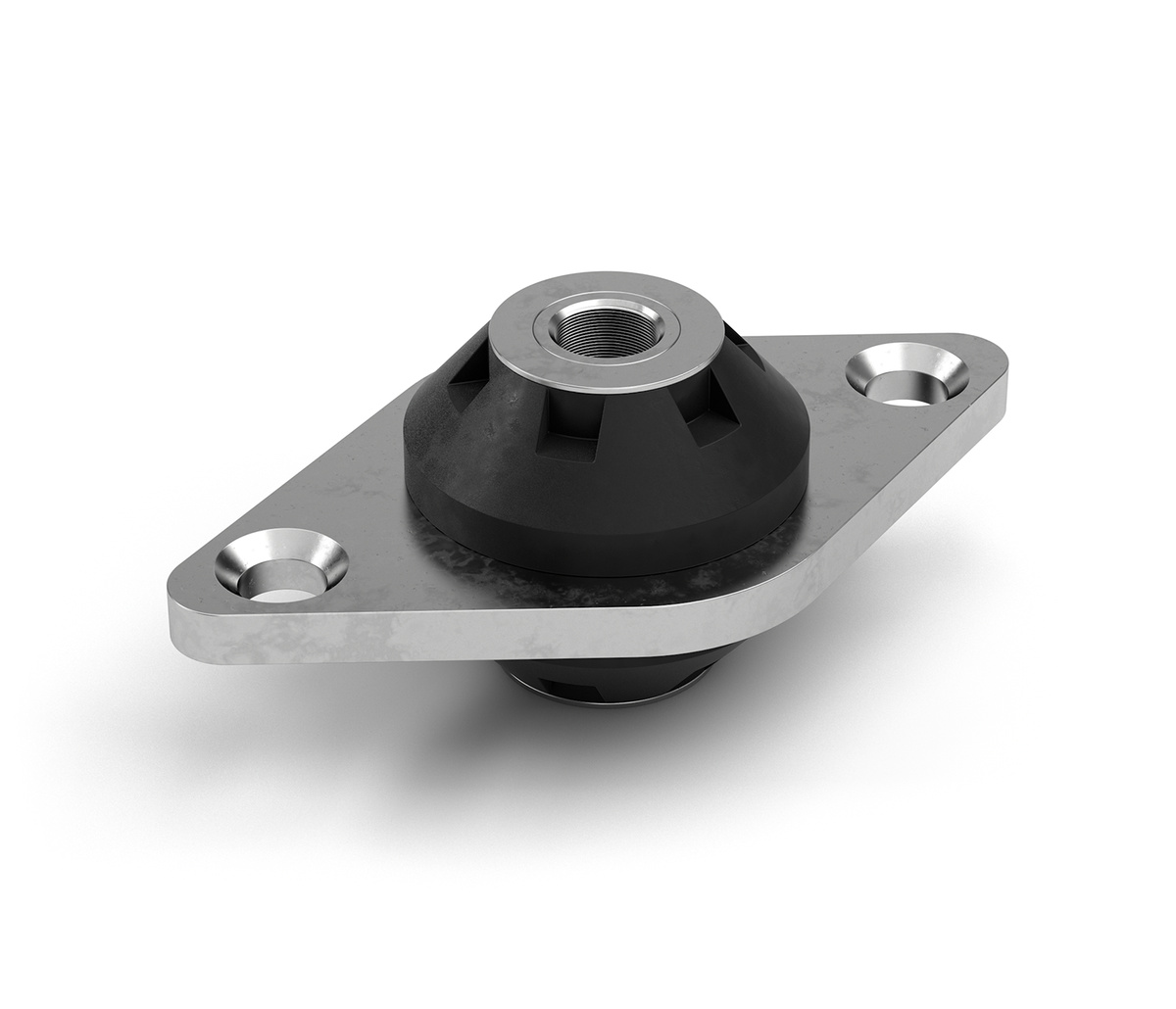

Rubber-Metal Isolators
AAM-56426
Effective vibration isolation in all directions
Vibration-Isolating Mounts
Natural frequency 26 Hz to 44 Hz
Load range 1.8 kg to 4.5 kg
Perfect for protecting lightweight equipment: All Altitude Mounts isolators, which are maintenance-free and ready-made, are designed to withstand loads between 0.5 kg and 22.7 kg. This enables the impact and vibration isolator connection elements to effectively protect lightweight components, despite their small size. They isolate in all directions and can be installed in every conceivable spatial axis. They are suitable for all shear, compression and tension loads. As standard they are made from galvanised metal and neoprene rubber elements. A highly shock-absorbing silicone version is also available from ACE for special applications, to protect against heavy impacts.
AAM All Altitude Mounts are primarily used for isolating light-weight electronic systems and components, but also in off-road vehicles and for military applications.
AAM All Altitude Mounts are primarily used for isolating light-weight electronic systems and components, but also in off-road vehicles and for military applications.
Please note that the last goods issue for Christmas/New Year will be on December 23th. In the new year, outgoing goods will start again on January 2nd
Rubber-Metal Isolators
AAM-56426
Effective vibration isolation in all directions
Vibration-Isolating Mounts
Natural frequency 26 Hz to 44 Hz
Load range 1.8 kg to 4.5 kg
Natural frequency 26 Hz to 44 Hz
Load range 1.8 kg to 4.5 kg
This product is not available for
online order.
online order.
If you are interested in ordering this
product, click the inquiry form below
and we will contact you.
product, click the inquiry form below
and we will contact you.

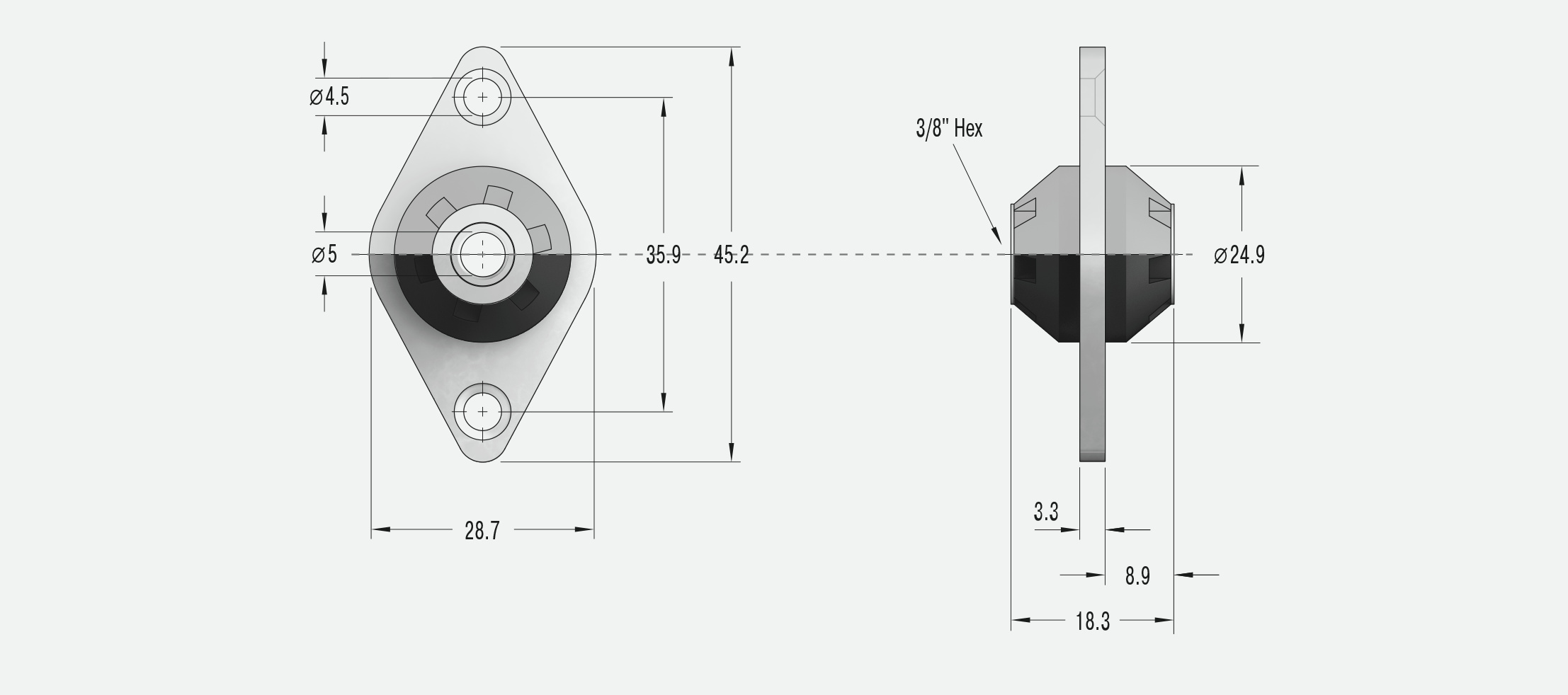

CAD Drawings
Product-Downloads
No downloads available for this product
