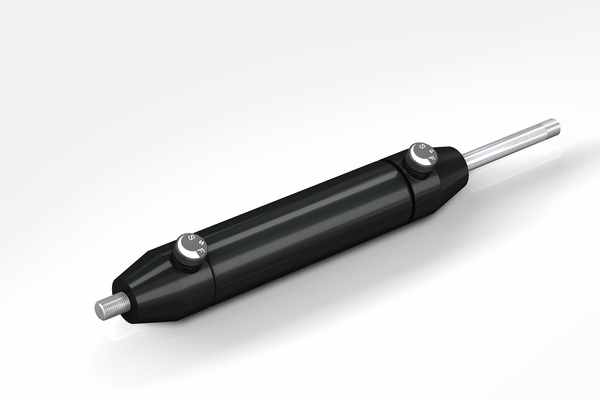

Hydraulic Dampers
DVC-32
Individual speed adjustment in both directions
Adjustable, Without Free Travel
Compression and extension force 42 N to 2,000 N
Stroke 50 mm to 150 mm
Can be regulated separately in any stroke position: The hydraulic dampers of the product family DVC-32 are the first dampers to have the ability to have the in and out speeds adjusted independently from the outside and therefore more precisely. With their individual adjustment segments for the push and pull direction as well as the double-sided action, these are suitable as safety or control elements.
The great number of mounting accessories makes assembly of these hydraulic dampers by ACE easier and allows these maintenance-free, ready-to-install and self-contained systems universally applicable. Qualitatively high grade, and at the same time simple to use; one of their uses is to absorb swinging loads.
These machine elements are used, for one, in the automotive sector and industrial applications as well as in mechanical engineering and the electronics industry.
The great number of mounting accessories makes assembly of these hydraulic dampers by ACE easier and allows these maintenance-free, ready-to-install and self-contained systems universally applicable. Qualitatively high grade, and at the same time simple to use; one of their uses is to absorb swinging loads.
These machine elements are used, for one, in the automotive sector and industrial applications as well as in mechanical engineering and the electronics industry.
