Profile Dampers
TUBUS TA
Compact size and strong force absorption
Axial Damping
Energy capacity 2 Nm/Cycle to 2,951 Nm/Cycle
Maximum stroke 5 mm to 48 mm

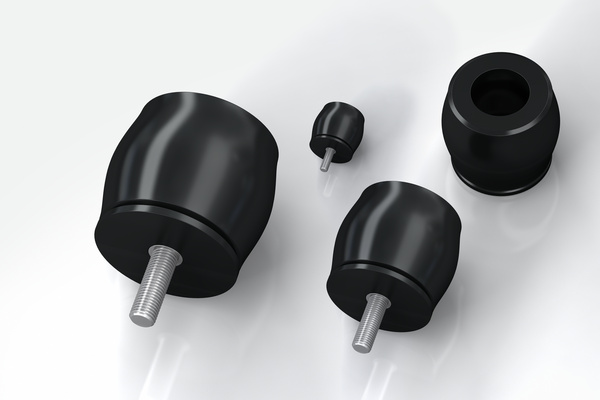

Very efficient energy guzzlers: The TA profile dampers from the ACE TUBUS-Series are maintenance-free and ready to install. They consist of co-polyester elastomer; a material that only heats up slightly and ensures consistent damping. The TA models absorb a lot of energy at the start of the stroke.

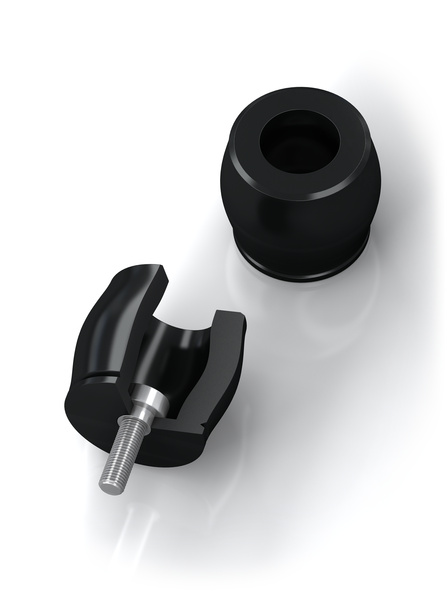

The TA family has been specially developed for maximum energy absorption within a range of 2 Nm to 2,951 Nm. The minimum height is thanks to the space-saving shape with Ø 12 mm to Ø 116 mm. The dampers can be very easily and quickly fixed with the provided special screw.
These compact, cost-effective machine elements are ideal as end position dampers in linear axes, in toolmaking and tool machines, in hydraulic and pneumatic equipment, handling equipment and other applications.
The TA family has been specially developed for maximum energy absorption within a range of 2 Nm to 2,951 Nm. The minimum height is thanks to the space-saving shape with Ø 12 mm to Ø 116 mm. The dampers can be very easily and quickly fixed with the provided special screw.
These compact, cost-effective machine elements are ideal as end position dampers in linear axes, in toolmaking and tool machines, in hydraulic and pneumatic equipment, handling equipment and other applications.
