Higher loading speed with simultaneous protection of the loading mechanism for lathes in the automotive industry

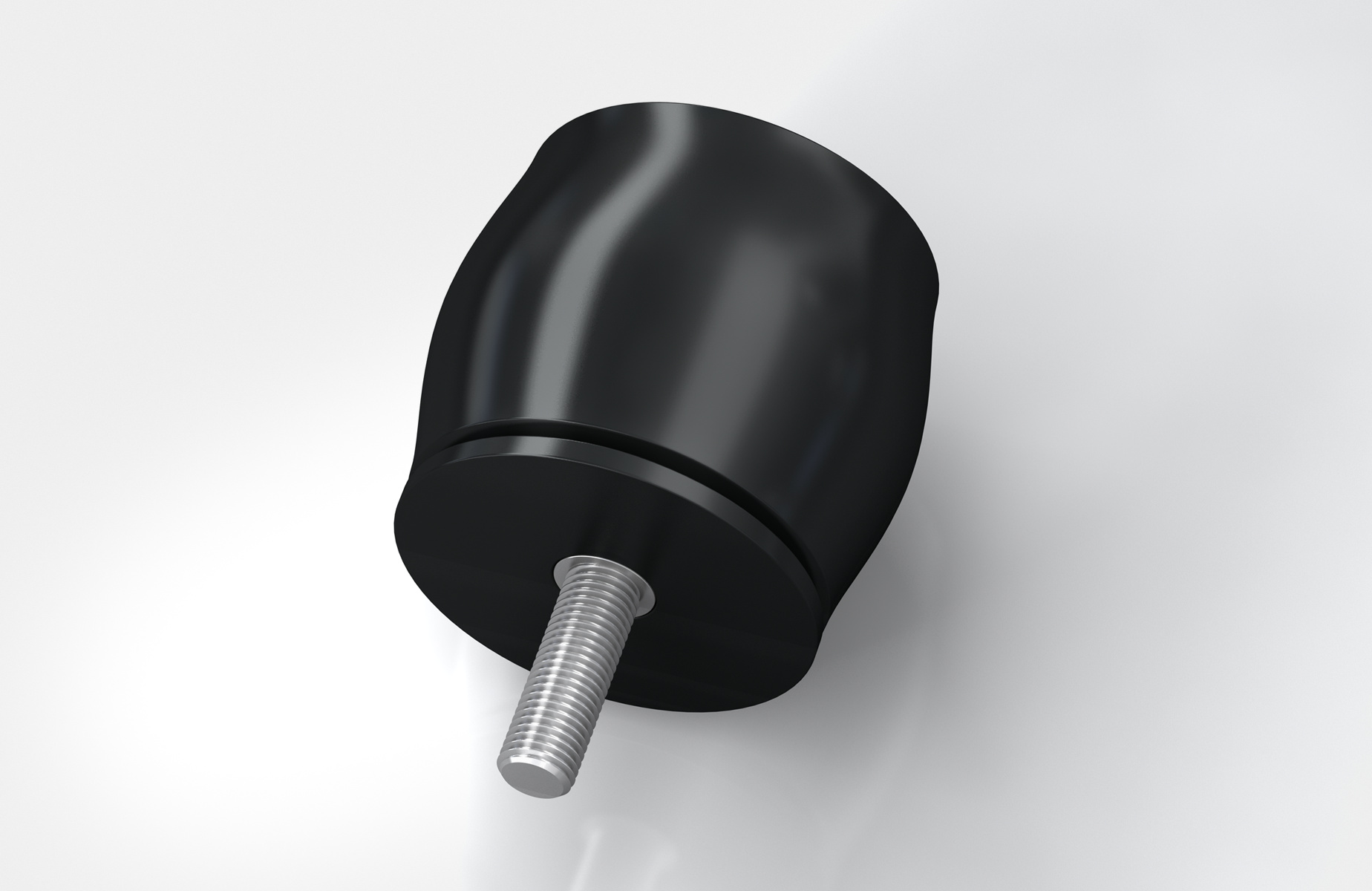

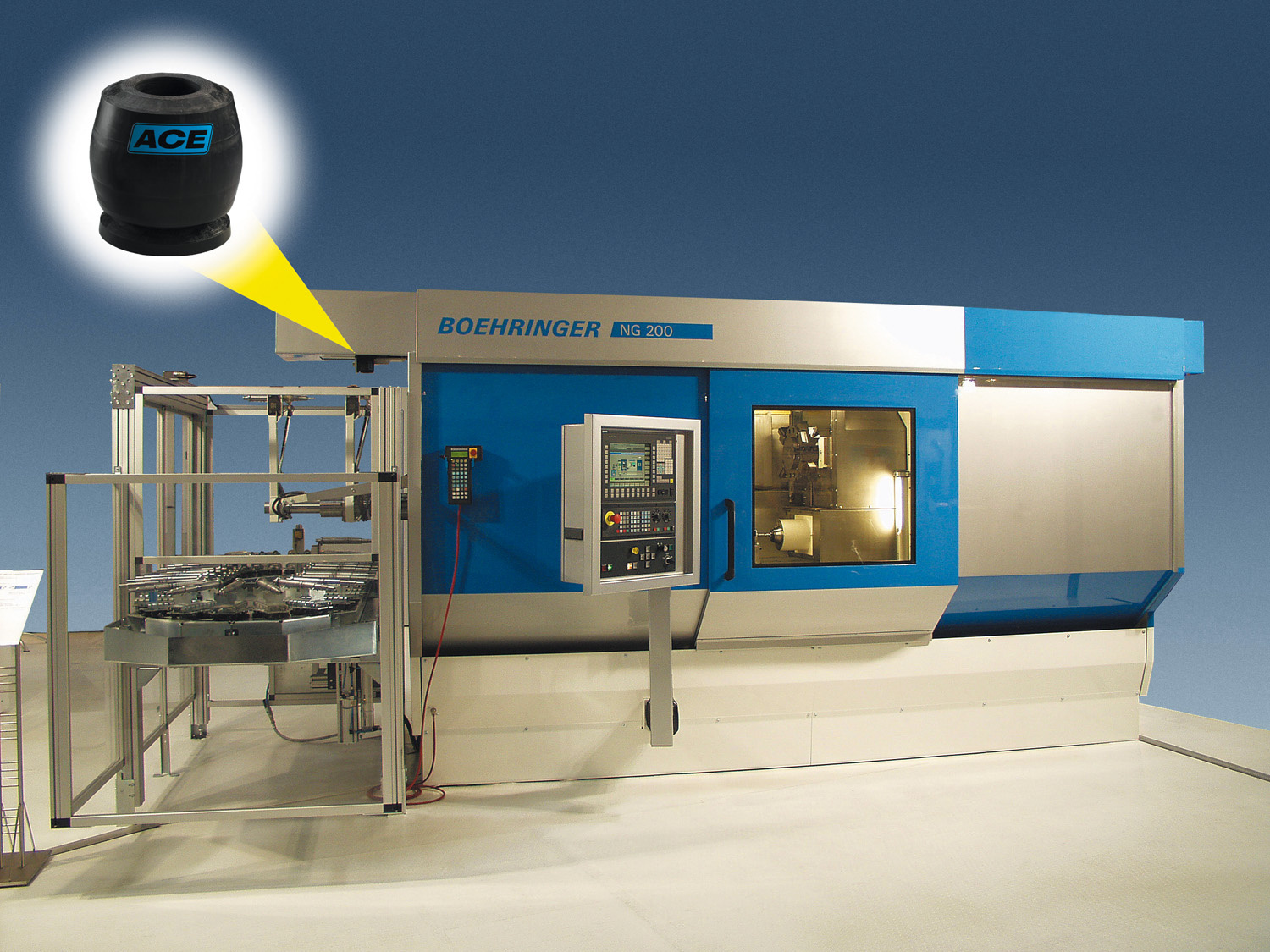

ACE TUBUS profile dampers protect the integrated loading station on a new high speed machining centre. The ACE TUBUS damper is designed to prevent overrun on the high speed loading station of a Camshaft machining centre used in the automobile industry. In the event that the drive train fails during operation or incorrect data is inputted the ACE TUBUS damper absorbs the impact preventing costly damage to the machine. The TA98-40 TUBUS damper impressed engineers with this exceptionally long service life in operation. When used as an emergency stop the TUBUS damper can absorb up to 73 % of the impact energy.
Profile Dampers - TUBUS TR
End position damping for hydraulic cylinders in test systems
In a testing facility for vehicle tanks, the test specimens are pulled out of the water with a support arm. A hydraulic cylinder carries out the swinging movement and is attenuated in the end position by two TUBUS TR85-50. Even if this work could be taken over by other absorber solutions, the energy balance clearly speaks for the benefits of the profile dampers: they are inexpensive, they save space, they are free of leaks due to solid construction and are suitable for underwater functions in the test pool.
Profile Dampers - TUBUS TA
Profile dampers and compact sliders: sheet metal working up to 1 million strokes
For the forming, folding, punching and cutting of steel sheets, voestalpine Camtec GmbH wanted to realise new compact slides that achieve service lives beyond 1 million strokes. The company was looking for compact dampers that could absorb the greatest possible forces when integrated into the tool as an end stop. After a consultation and sampling process, the choice fell on ACE TUBUS profile dampers.
Profile Dampers - TUBUS TR-H
Protection of people and machines during automated sealing of screw caps
The universal capping machine from Metallatelier GmbH is used to automatically seal various bottles and sizes when filling them with disinfectants. To protect the movable topp art of the unit, including the hood, the designers were looking for inexpensive dampers. They chose our TR30-15H profile dampers because they had already had very good experiences with our hydraulic dampers.
Miniature Shock Absorbers - MC150 to MC600
Increase speed and reduce downtime with automatic sealing of screw caps
A customer of Metallatelier GmbH needed a special machine for automatically capping bottles with disinfectant during the COVID-19 pandemic. The German company optimised a proven design for this purpose. This is also because the designers chose our miniature shock absorbers for end position damping and limiting the contact roller gripping movement. At the bottom, two MC150EUM brake the pneumatic linear slide, serve to limit the closing movement in the end position and also protect the entire construction in the event of an accident. At the top, a harder designed single type MC150EUMH ensures saved space and safe deceleration of the slide.
Industrial Shock Absorbers - MA/ML33 to MA/ML64
Securing linear drive units mechanically
GSI Helmholtzzentrum für Schwerionenforschung in Darmstadt, Germany, operates a unique accelerator for heavy ions. Currently, the international accelerator facility FAIR, one of the largest research projects worldwide, is being built there, aiming to produce and research matter in the laboratory that otherwise only occurs in the universe. For the collector ring, which is used to store and cool the ions, the GSI engineers were looking for mechanical rather than electronic components that protect the drive units which are equipped with powerful linear motors. They found what they were looking for when they got in touch with us.
Damping Pads - SLAB 030 to SLAB 300
Load protection for transport units in tyre testing systems
The damping pads SLAB 030 to SLAB 300 were developed to absorb shock loads. In this case, they make tyre testing systems safer by providing optimum protection for the sliding parts of the machine during quality tests. The individual customisation of the ring shape of the centre arm and simple integration into the equipment also support the decision for applying these innovative absorber elements.
Damping Pads - SLAB 030 to SLAB 300
Impact damping for heavy industrial wood saws
In this application, SLAB damping mats SL-030 with a thickness of 12 mm were screwed between two steel sheets over the entire surface in order to protect wooden strips with different weights and impact speeds of approx. 2 m/s. This creates an even damping effect over the whole impact area, which protects the impact surfaces of the battens from an excessive impact load. The minimisation of recoil as well as reduction of noise are further positive side effects of this construction.
